Description
Features :
- Vertical cast iron burner, each 30,000 BTU/hr
- 6" stainless steel adjustable heavy duty legs
- Tube design with baffles inside for better heat transfer
- Continuous pilot for easy start of main flame
- Chromed basket with plastic coating handle
- Large cold zone to prevent scorching of food particles at the bottom
- Robertshaw control system to guarantee best performance
- Prompt temperature recovery to make sure fries are crispy
- 1 ¼" drain cock for easy drainage of oil
- Thermostat adjusts from 93ºC/200°F to 204ºC/400°F
Variations :
Model | Description |
Total BTU/HR |
Packing Size (IN) |
N/W (LB) |
G/W (LB) |
PGF90 | 3 Burner gas fryer/ 40lbs Oil cap | 90,000 | 18.1x32.7x33.6 | 143 | 156 |
PGF120 |
4 Burner gas fryer/ 50lbs Oil cap |
120,000 | 18.1x32.7x33.6 | 156 |
180 |

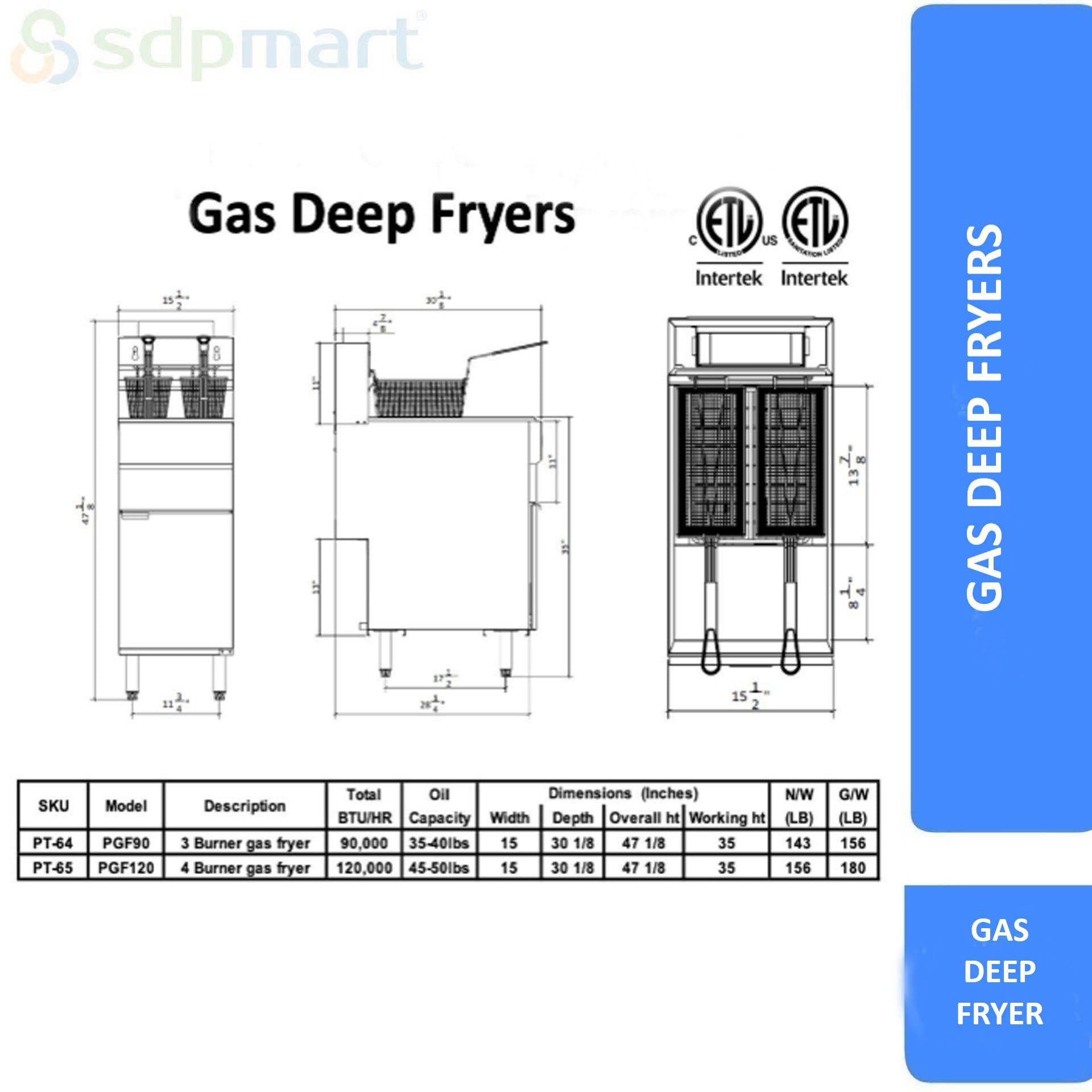

Dimesions :
1. 3 Burner 90000 BTU, 35-40lbs Capacity, Model# PGF90
- Height: 47.25" till top from back side, 35" from front upto cooktop
- Width: 15.5"
- Depth: 30.25"
- Weight: 143 lbs
2. 4 Burner 120000 BTU, 45-50lbs Capacity, Model# PGF120
- Height: 47.25" till top from back side, 35" from front upto cooktop
- Width: 15.5"
- Depth: 30.25"
- Weight: 156 lbs
